Steam Generator Teaching Equipment

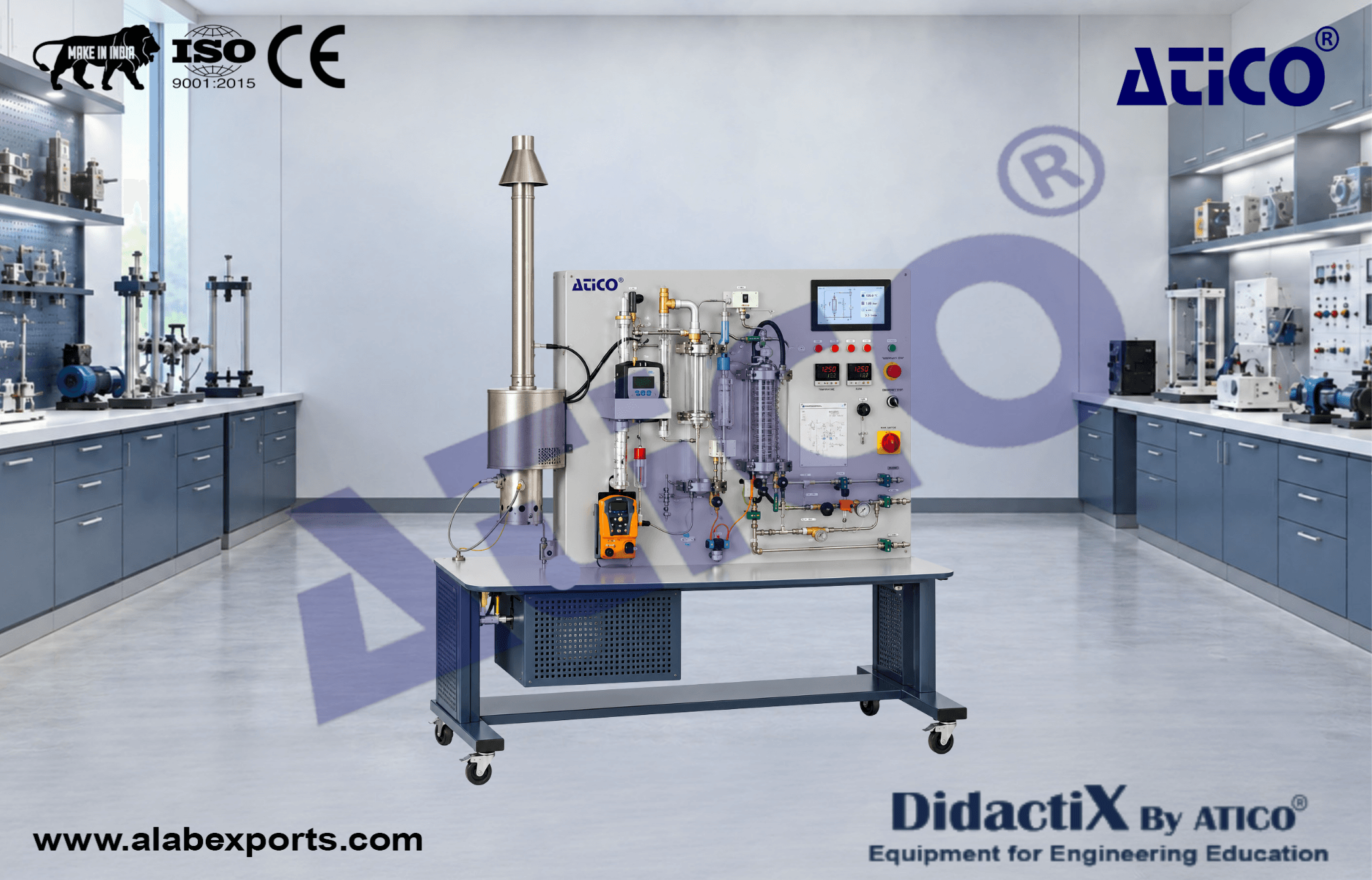

Steam Generator is designed for practical teaching and demonstration of steam generation using a gas-powered heating system. The unit can be connected to a steam turbine for operating and studying a complete steam power plant.

The system features a once-through boiler with a gas-powered burner and superheater. The steam generator produces steam at an operating pressure of up to 8 bar, with a maximum pressure of 10 bar and a maximum steam temperature of 250 °C.

A condenser is provided as a thick-walled glass cylinder with a water-cooled tube coil and water-jet pump for air extraction. The system incorporates a closed-circuit feed-water supply and sensors for measuring temperature, pressure and flow rate.

Safety facilities are provided in accordance with the pressure equipment requirements for safe operation. Exhaust gas analysis can be carried out using an exhaust gas analyzer, while PC-based software supports data acquisition via USB.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Burner :

• Heating power: 6 kW

Steam Generator :

• Type: Once-through boiler
• Operating pressure: 8 bar
• Maximum pressure: 10 bar
• Maximum steam temperature: 250 °C
• Maximum steam output: 8 kg/h
• Superheater power: 750 W

Measuring Ranges :

Temperature :

• 0–400 °C

Pressure :

• 0–1.6 bar absolute (condenser)
• 0–16 bar (live steam)

Flow Rate :

• 0–14 L/min (propane gas)
• 0–720 L/h (cooling water)
• 0–15 L/h (feed water)

Power and Electrical :

• Mains connection: 230 V, 50 Hz, 1 phase

Dimensions and Weight :

• L × W × H: approximately 1830 × 790 × 1770 mm (without chimney)
• Weight: approximately 280 kg

Required for Operation :

• Gas supply (propane gas): 700 g/h, 50 mbar
• Water connection: 720 L/h, 2 bar
• Drain
• Ventilation
• Exhaust gas routing
• PC with Windows recommended

• Steam generator with gas-powered heater
• Steam turbine can be connected for steam power plant operation
• Condenser with thick-walled glass cylinder
• Water-cooled tube coil
• Water-jet pump for air extraction
• Closed-circuit feed-water supply
• Sensors for temperature, pressure and flow rate
• Safety facilities for safe operation
• Exhaust gas analysis with exhaust gas analyzer
• PC-based data acquisition via USB
• Windows-compatible software
