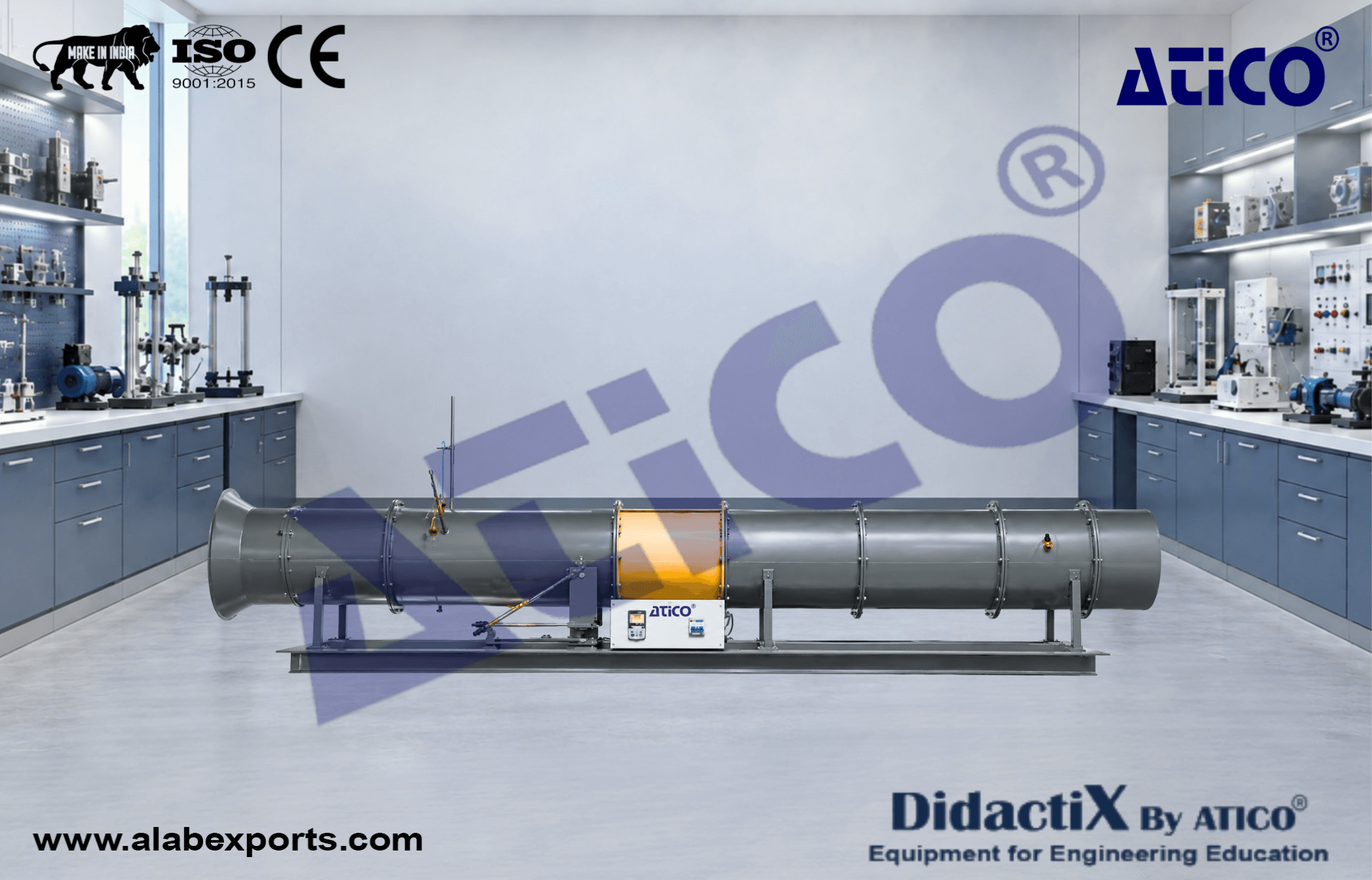

Two Stage Axial-Flow Fan Teaching Equipment

Two Stage Axial-Flow Fan is designed for practical teaching and investigation of the operating characteristics and performance of two-stage axial-flow fans. The system consists of two identical single-stage fans that can be operated individually or connected in series to investigate two-stage fan operation.

Both fans are equipped with individually adjustable blades and variable-speed drives using frequency converters. A flow-optimized nozzle and flow straightener provide smooth, low-turbulence airflow. The air flow through the pipe section can be adjusted using a throttle valve, while an optional pipe bend at the outlet can be used to investigate flow deflection.

A measuring device with a three-hole probe is provided for determining differential pressure across the rotor and guide vane system. Sensors measure pressure and temperature upstream and downstream of each fan, while the volumetric flow rate is determined through the inlet nozzle. The system is suitable for fluid mechanics, turbomachinery and mechanical engineering laboratories.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training applications.

Fans :

• Number of fans: 2
• Configuration: Single-stage fans, individually operated or connected in series
• Drive motor rated output: 3.45 kW
• Maximum pressure difference: 798 Pa
• Speed: 0…2850 min⁻¹
• Blade angle adjustable up to 39°

Measuring Section :

• Inner diameter: 400 mm

Measuring Ranges :

• Temperature: 0…100 °C
• Differential pressure: ±25 mbar
• Radial position of probe: 100…200 mm

Power Supply :

• 400 V, 50 Hz, 3 phase

• Investigation of a two-stage axial-flow fan
• Two identical single-stage fans in series configuration or individual operation
• Individually adjustable fan blades
• Variable speed of both fans via frequency converters
• Flow-optimized nozzle for smooth airflow
• Flow straightener for low-turbulence flow
• Adjustable airflow through throttle valve
• Optional pipe bend at the outlet for flow deflection
• Measuring device with three-hole probe for determining differential pressure on rotor and guide vane system
• Sensors for pressure and temperature upstream and downstream of each fan
• Volumetric flow rate measurement via inlet nozzle
• Data acquisition via Ethernet
