Wave Energy Converter OWC Teaching Equipment

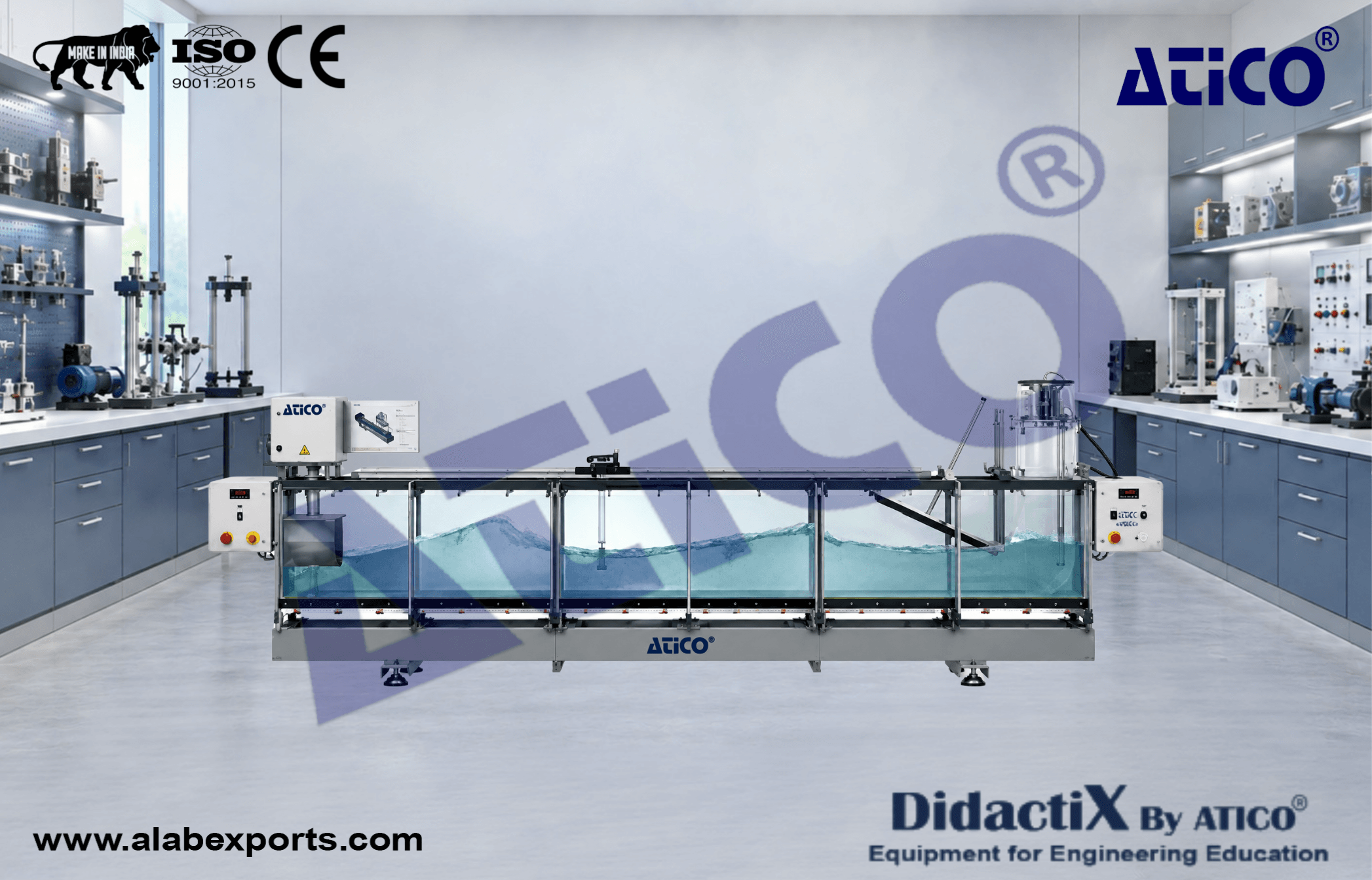

Wave Energy Converter, OWC is designed for practical teaching and investigation of wave energy conversion using an oscillating water column system. The complete setup consists of a wave generator, wave flume and wave energy converter.

The wave generator features a control unit, AC motor with adjustable frequency and adjustable displacer lift for generating different wave conditions. A movable wave measuring device with a level sensor is provided for measuring wave height, while a baffle plate guides the generated waves into the chamber.

The wave energy converter incorporates an oscillating water column, chamber and turbine unit. The turbine unit consists of a rotor and generator, with pressure measuring points provided to determine the flow velocity through the turbine.

The turbine can initially be started using a DC motor and switches to generator operation for electricity production once the target speed is reached. The system can be operated manually using switch boxes or digitally through PC-based software, with data acquisition via USB.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Wave Generator :

• Power: 550 W
• Displacement volume: 26.5 L

Wave Flume :

• L × W × H: approximately 5000 × 300 × 600 mm

Wells Turbine :

• Power: 0–1000 mW
• Speed: 0–6000 min⁻¹
• Rotor: 6 blades
• Outer diameter: 120 mm
• Inner diameter: 80 mm

Measuring Ranges :

• Frequency: 0–1.83 Hz (wave generator)
• Wave height: 0–600 mm
• Level: 0–600 mm (chamber)
• Flow velocity: 0–26 m/s
• Speed: 0–6000 min⁻¹
• Current: ±1000 mA

Power and Electrical :

• Mains connection: 230 V, 50 Hz, 1 phase

• Wave energy converter consisting of wave generator, wave flume and wave energy converter
• Wave generator with control unit
• AC motor with adjustable frequency
• Adjustable lift of displacer
• Movable wave measuring device with level sensor
• Wave height measurement
• Baffle plate for guiding waves into the chamber
• Oscillating water column chamber
• Turbine unit with rotor and generator
• Pressure measuring points for determining turbine flow velocity
• DC motor for starting the turbine
• Automatic changeover to generator operation at target speed
• Manual operation via switch boxes
• Digital operation via PC-based software
• Data acquisition via USB
• Windows-compatible software
